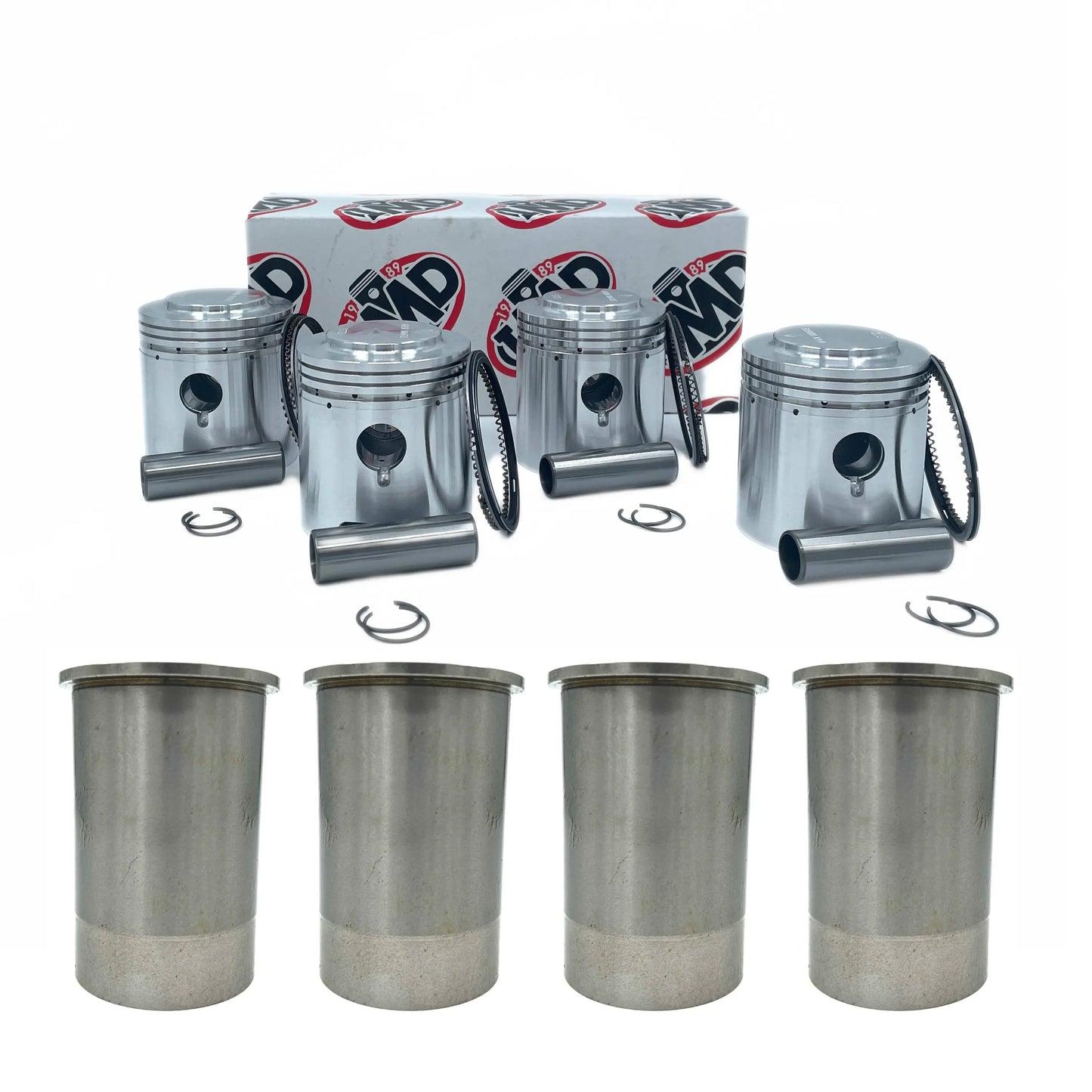

Ariel Square Four 4G MkII 1953-1959 Piston Kits & Cylinder Liners

Also fits MKI version engine

Pistons (4) Ring Sets (4) Piston Pins (4) Circlips (8)

Size: Std = 65mm

Replacement Piston kit designed by IMD Piston Co. and manufactured for IMD Piston Co. England

IMD Ref. P11024-00


Cylinder sleeves / liners x 4 , Westwood UK.

For Aluminium Barrels Only

NOTE: The sleeves are un-finished condition, will need specialist machining/reboring service before use

Material Specification: Centrifugally spun grey cast iron, Hardness 200-270HB. 93-104 HRB
Euro Spec. DIN 1691 GG30 . US Spec ASTM-A48 / Class 30


The pistons are within a 5 gram range of the original piston,

The correct offset on the thrust side of the piston has been engineered into our pistons; not all manufacturers follow this design as laid down in the original specifications.

The ring sets utilise the 3 piece oil control type offering excellent sealing to the cylinder wall.

The piston pins are internally tapered, and are constructed using SCM415 material achieving virtually the same weight as the original pin..
